Automatic Bottle Filling Machine

Automatic Bottle Filling Machine

We are a leading automatic Bottle Filling Machine manufacturer in India

The automated Bottle Filling Machine stands out for its high functionality and low maintenance costs. Due to its ergonomic design, the provided equipment is widely renowned for its efficient and quick filling of bottles. It is praised for its design and consumes less power when compared to similar products on the market. The machine’s construction is entirely made of stainless steel, including the machine frame structure, and it complies with cGMP standards.

27+
Years Of Experience
Gives you better results.
Get A Free Quote

Our High Quality Product

In an automatic bottle packing line, such as a filling, capping, and labeling line, an automatic filling machine organizes, fills, and then releases bottles.

They may be designed to fill each bottle with a specified and accurate volume of product, eliminating the need for a filling line operator. Furthermore, consumers can purchase this automatic filling machine from us at a low cost.We are known as a major Automatic Bottle Filling Machine Suppliers In India. Specifically, built by our trained specialists who employ cutting-edge technology to meet the different needs of our clients.

Download Catalogue

Used Latest Technology And Quality Row Material For Products

Aside from that, we provide this machine to our loyal customers in a variety of configurations at rock-bottom costs. Our automated fillers are designed to give clients a flexible and simple-to-adjust automatic bottle filling solution that allows for quick changeover times.The pumps on our automated filling machines only come into contact with the filling tubes outside, never with the product.

Call Now: (+91) 9821018579

Short Description
Of Our Products

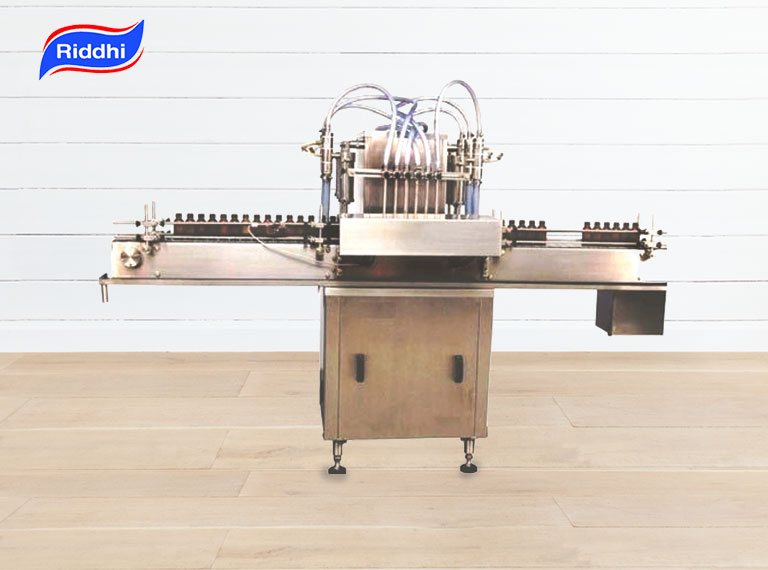

Automatic volumetric liquid bottle filling machine work on volumetric principle with diving nozzles. The unit is made compact, versatile & enclosed in stainless steel elegantly matt finished body, consist of S.S. Salt Conveyor, Reciprocating Nozzle with self centering devices & S.S. Syringe. No container No filling system arrangement is standard features of the machine. The main drive of the machine and conveyor drives consist of A/c Motor with A/c Frequency drive.
01

OPERATION
Of Our Products

Containers moving on S.S. Slat conveyor, feed below the filling nozzles through a twin pusher system. The twin pusher system and reciprocating nozzles are precisely matched for centering of container below nozzles, to avoid spillage of liquid on container, To minimize foaming adjustable nozzles will reciprocate according to filling doze, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. The dosing block with a hexagonal bolt fitted below syringes. This means different fill size can be easily set.
02
SALIENT FEATURES

  1. Drip tray under the conveyor.

  2. No Bottle  No Filling system

  3. S.S. Elegantly matt finished body.

  4. Drain tray around machine platform.

  5. Pneumatic bottles stopping arrangement.

  6. +1% Filling Accuracy on single dose.

  7. Error code display on AC frequency drive on control panel.

  8. Elegant and easy control panel for total control on operation.

  9. Rigid vibration free construction for trouble free performance.

  10. Syncronized two nos. A/c drive for main motor & conveyors belt.

  11. Safety guard for conveyor gear box, motor, and pneumatic cylinders.

  12. MCB for over load protection, and prevention against short circuit.

  13. Minimum change overtime, from one size to another container or fill size.

  14. PLC HMI based control panel with Scada, 12 CFR compliant Part 11 is optional.

  15. Inbuilt  protection against over current, Voltage fluctuation, Short circuit in AC frequency drive.

  16. Self lubrication UHMW-PE guide profile for SS slat chain provides low friction wear surface, smooth And noiseless conveying.

OPTIONAL FEATURE

  1. Acrylic cabinate.

  2. Nitrogen flushing.

  3. Acrylic cover on conveyor.

  4. In-built pre-inspection.

  5. Automatic chain washing system for conveyor belt.

  6. Float tank ( Holding Tank) with or without stirrer.

  7. PLC HMI based control panel with Scada, 12 CFR compliant Part 11.

UTILITY REQUIRMENT

  1. Electrical load : 2 KW

  2. Electrical Supply : 3 Phase+Neutral+Earthing

  3. Air Pressure : Minimum : 6 bar pressure 0.5 CFM

Technical Specifications Of Automatic Bottle Filling Machine

 As a consequence, cleanup is quick and easy, and the risk of cross-contamination is eliminated. You can choose an automated bottle filling machine appropriate for your filling lines from a variety of configurations ranging from 1 to 8 filling heads. Our automated filling machines include a user-friendly touchscreen menu.

Model RALF-100 RALF-150 RALF-200
Out put/Hour 2400 to 6000* 3600 to 9000* 5000 to 12000*
Direction of movement Left to Right _ _
Number of head/syringes 4 Nos. 6 Nos. 8 Nos.
Electrical Main Machine 1 HP/415 Volts50 Hz. (1.5 HP if maximum vol. is 1000ml in single doze) 6 Nos. 1.5HP/415Volts50 Hz. (2 HP if maximum vol. is1000mlin single oze)
Specification Main Machine 0.5 HP/415 Volts/50Hz. 6 Nos. 1.5HP/415Volts50 Hz. (2 HP if maximum vol. is1000mlin single oze)
Height of Conveyor** 860mm to 910mm Adjustable 6 Nos. 1.5HP/415Volts50 Hz. (2 HP if maximum vol. is1000mlin single oze)
Machine Dimension** 2135mm (L) x 1150mm (w)x 1610mm (H) 6 Nos 2135mm(L)x1350mm (w) x 1650mm (H)
Case Dimensions 2350mm (L) x 1350mm (w)x1650mm (H) 6 Nos. 2350mm(L) x1550mm (w) x 1650mm (H)
Net Weight 600 Kgs. 700 Kgs. 850 Kgs.
Gross Weight 850 Kgs 950 Kgs. 1100 Kgs.
Change Parts required (A) Syringes. (B) Nozzle (C) Inlet & outlet hos pipe _ _
Input Specification Container Neck Diameter** Minimum 22mm** Round Shape (A) dia.28mm to dia. 100mm*** (B) Height 58mm to 240mm*** (Height option Other bottle height available) _
Container Size* Flat / Square (A) 15 mm to 100 mm (length) (B) 10mm to 50mm (Width) (C)  58mm x 240mm (Height) _

Modifications to fit the needs of the clients!

This page shows real-time production statistics such as the number of bottles filled and the bottle per minute pace. Also, the Filling programs can be saved for future use, and settings can be easily altered and saved. Also, they are utilized in a variety of industries, including food and beverage, pharmaceutical, chemical, and e-liquid.
