High Speed Tablet Press

High Speed Tablet Press

We are a leading high-speed tablet press manufacturer in India.

It is a single-sided high-speed central drive Rotary Tablet Press with Pre-Compression, appropriate for medium batch size production. It is used in the pharmaceutical and related industries to make easy and accurate tablets from powder. It is intended to satisfy the most stringent CGMP requirements while also ensuring the most cost-effective and efficient tablet manufacturing.

27+
Years Of Experience
Gives you better results.
Get A Free Quote

Our High Quality Our Product

It has a one-of-a-kind ergonomic design that makes it simple to use, quick to switch, and simple to clean with minimal downtime. There are three zones on the Tablet Press: the Zone of Tablet Compression, the Zone of Machine Service, and the Zone of Electrical Control.

It is a machine that presses powders into tablets of consistent size, form, and weight. It significantly decreases the possibility of tablet faults, as well as aiding in precise capping, laminating, selecting, and adhering. This high-speed press has the benefit of producing tight tablets with little or no deviation since each tablet is pressed from both sides with uniform pressure.

45 station High Press Mark IV
37 Station High Press Mark II

Used Latest Technology And Quality Row Material For Products

Its makers guarantee that the punching tool is of excellent quality and that it is created with great care to produce smooth, high-quality tablets.We are regarded as one of the most dependable high-speed tablet press suppliers in India.

Call Now: (+91) 9821018579
AVAILABLE MODELS

  1. 61 STN. BB-TOOLING

  2. 37 STN. D - TOOLING

  3. 45 STN. B-TOOLING

  4. 55 STN. BB-TOOLING


SALIENT FEATURES

  1. All guards are interlocked for safety.

  2. The machine is having anti vibrating mounts.

  3. The machine is having center Drive Type Gear Box.

  4. The machine is having tablet weight consistency.

  5. Lower punch seals are provided at lower punch hole in turret.

  6. The machine is having Helical gear ring to drive the turret.

  7. A Hydraulic Gauge is also provided on lower guard for easy view.

  8. The machine is having elegantly designed cabinet top of SS-304.

  9. The machine is having excellent paint, inside wherever it is required.

  10. The machine is having round hoppers of SS-304 with Butterfly valve.

  11. The machine is having A.C. variable frequency drive for the main motor.

  12. The machine is having hard chrome plated, MS Fabricated upper roll carriers.

  13. The machine is having BALL BEARING TYPE upper & lower pressure rolls.

  14. Machine is having a square design with total consideration of GMP standards.

  15. The lower guard of the machine are of SS-304 material having excellent matt finish.

  16. The hand wheel is conveniently located for indexing the turret during tool change over with single operator.

  17. All the tablet parameters can be fine tuned during the operation of the machine from outside the tableting zone.

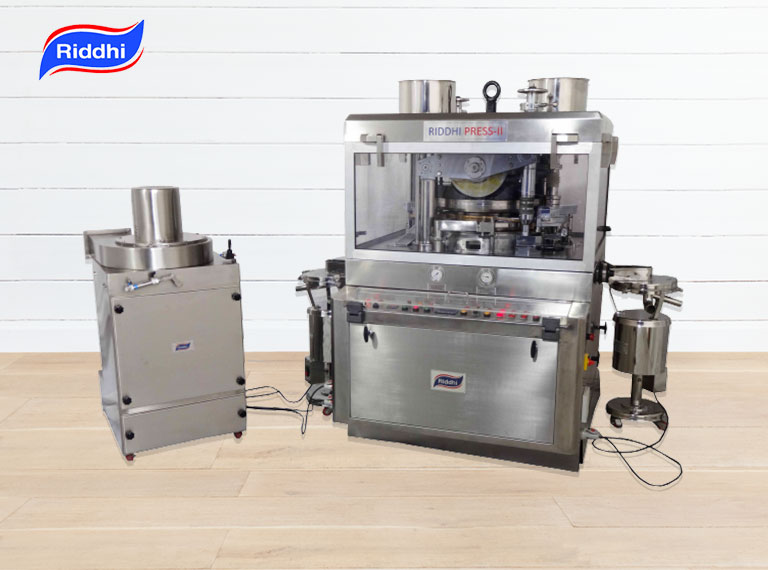

  18. Riddhi Press Mark II is a high speed Rotary tablet press for higher table output, suitable for large batch production.

  19. The machine is having specially designed pressure Link Assly. Which ensures sufficient & equal pressure to the tablets.

  20. The machine is having specially designed Dust Extractor Nozzle which can be connected with the dust Extractor, away from machine.

  21. Machine is also having A.C. variable frequency drive for force feeding motors, which enables operators to synchronize machine’s speed & feed both.

  22. The machine is having sturdy Alluminum section framed, Acyrlic guards with SS Hinges & Handle & are also fitted with Gas Filled – Shock absorbers.

  23. The machine is having box type Detachable control panel having all electrical controls on the top. Acrylic cover is also provided to protect the controls from the dust.

  24. The machine is having Elegant Look & operator friendly design and is manufactured in such a manner that it gives all satisfaction to the operator while the production.

  25. The machine having Hydraulic accumulator cylinder which controls two other Hydraulic cylinders connected to Lower roll carries. A Power pack can also be provided (Optionally).

  26. The machine is having excellent bottom driven force feeding system for material feeding. However, Gravity type feeding also can be provided. (optionally)
    Two layer attachments can also be provided. (optionally)

  27. There is no colour part in tablet manufacturing zone & all other parts are either of SS-304 material or Gunmetal or of hard chrome plated. All Hardware are used of SS-304 quality in tablet manufacturing zone.

  28. The machine has been designed as to minimize the change over time. The weight adjustment section is easily removable which provides good access for the removal/replacement of lower punches & dies, away from compression zone.

  29. The machine is having Electromagnetic clutch arrangements.The machine is having one piece turret of special grade casting. However, three piece turret with SS-304/SS-316 middle plate is also available (optionally). Electro less nickel plating can also be available to the turret, (optionally).


Technical Specifications Of High Speed Tablet Press

 This Series of high-speed rotary tablet presses represents a significant advancement in tablet pressing technology, attaining extremely high levels of productivity and speed while providing remarkable improvements in terms of safety, efficiency, and output quality. These modern pill presses are simple to operate thanks to an LCD touch screen display panel, and they are easy to maintain with features like the automated lubrication system.

Models RDIID-37 RDIIB-45 RDIIBB-55 RDIIBB-61
Tooling D B BB BB
No . Of Stations 37 45 55 61
Max . Output(Tab/hr) 222,000 324,000 395,000 438,000
Max . Operating Pressure(Main) 100 kN 65 kN 65 kN 65 kN
Max . Tablet Dia 25 mm 17.5 mm 17.5 mm 17.5 mm
Max . Depth of Fill 20.5 mm 15.9 mm 11.1 mm 11.1 mm
Upp.Punch Penetration 3.2 to 8 mm 3.2 to 8 mm 3.2 to 8 mm 3.2 to 8 mm
Main Motor

  7.5 HP/ 1440 RPM / 3 PHASE / A.C.
Force Feeder Motor

0.25 HP/2800 RPM/ 3 PHASE / A.C.
Total Power

8 HP / 3 PHASE / A.C.
Overall Dimensions 148 x 141 x 188(H)(Cms.) Approx.
Net Weight 2250 Kgs.

Modifications to fit the needs of the clients!

For many operations, the operator can select between manual and automated modes, providing for easy usage when using conventional settings or fine control for expert users. Clients may get this machine from us in a variety of technical specifications based on their needs at a reasonable price.
