Multi Mill

Multi Mill

Leading  Multi Mill Manufacturers, providing a high-quality line of Pharmaceutical Multi Mills.

We have years of expertise dealing with a wide range of pharmaceutical machines. Our machines are carefully constructed following established quality standards to give a faultless range of products to our respected clients. It works on the principle of variable power swing beaters, with the knife and impact edge spinning inside a predetermined screen to accomplish the desired size reduction.

27+
Years Of Experience
Gives you better results.
Get A Free Quote

Our High Quality Product

Our high-quality Mill machine is built to run continuously for lengthy periods. Our company is made up of solely devoted individuals that work hard to produce properly manufactured Pharmaceutical Multi Mills.

The machines produced by us are creating world-class standards in the industry, with special qualities such as better efficiency, a high level of performance, superior quality ingredients, and dimensional correctness. As a result, we are the top Multi Mill manufacturers in Maharashtra. All of the offered high-quality items are widely recognized and appreciated by clients worldwide.

Download Catalogue

Used Latest Technology And Quality Row Material For Products

The hopper material is transported to the processing chamber, where it is directed to the perimeter and passes radially and tangentially through the screen. Finally, the treated material is collected in a container located beneath the processing chamber.

Call Now: (+91) 9821018579

Various Applications
Of Our Products

Multi Mill is widely used for wet and dry granulation,pulverisation etc. in Pharmaceuticals,Chemicals,Cosmetics, Ceramics, Colours, Dyestuff, Food products etc.It also finds application in Pesticides, Fertilizers, Spices,Detergents, Insecticides, Plastic and Resins Industries.
01

Short Description
Of Our Products

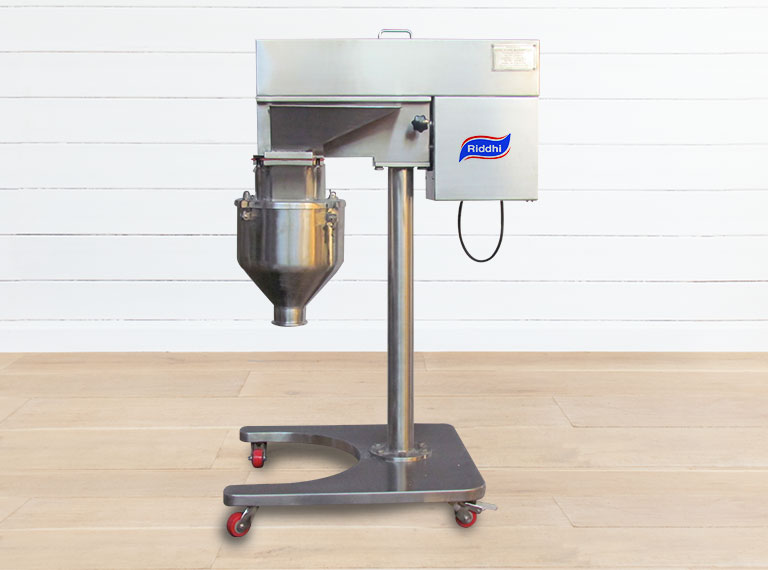

Unit consists of S.S. 304 quality hopper and processing chamber (can be provided is S.S. 316 quality at extra cost) with beaters assembly, motor, reversible switch, DOL starter, four speed step pulley, Suitable screen with painted pillar mounted on base plate, with castors.
02

OPERATION
Of Our Products

It operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber.Output and quality of the final product depends on three main factors : (1) Shape of beaters (knife/impact edges), (2) Speed and (3) Screen.
03

SALIENT FEATURES
Of Our Products

Direction of beaters can be changed by reversible switch from knife to impact forward and vice-versa. All contact parts can be easily and quickly dismantled and cleaned. Machine is designed for continuous operation. Cylindrical screen for higher output. Castors provided for mobility.Flame proof electricals can be provided at extra cost. Beaters and scrapper blades of SS 410 quality are hardened and hard chrome plated.
04

Technical Specifications Of Multi Mill

Multi-mill machines are commonly used for wet and dry granulation, pulverization, and other processes. Pharmaceutical, chemical, bulk drug, cosmetics, dyestuffs, and food processing industries all employ this equipment.

MULTI MILL GMP MODEL : BELT DRIVEN
Model RDMM
Output 50 to 200 kgs/hr
Rotor Speed 750 / 1500 / 2300 / 3000 RPM
Screen Dia ID 260 mm x HT 135 mm
Electricals 3 HP / 1440 rpm.
MULTI MILL GMP MODEL : Direct DIRECT DRIVE Drive
Model RDMM-2
Output 50 to 200 kgs/hr
Rotor Speed 750-3000 RPM     with vfd
Screen Dia ID 260 mm x HT 135 mm
Electricals 5 HP / 1440 rpm.

Modifications to fit the needs of the clients!

We are pleased to introduce ourselves as Multi mill supplier in Maharashtra. Our multi-mill machines, which can be modified to fit the needs of the clients, can also be used for a variety of additional applications in the chemical, cosmetic, and food processing sectors, among others. All its contact components are composed of stainless steel, either stainless steel 304 or stainless steel 316. Beater and scraper blades are chrome coated and extra toughened.
