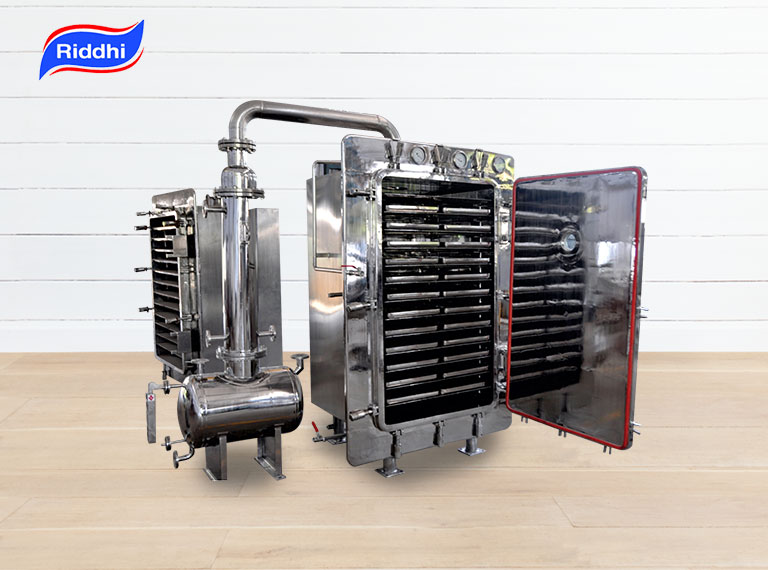

Vacuum Tray Dryer
We are one of the most renowned vacuum tray dryers manufacturers in India that are built in compliance with industry standards.
We provide them at industry-leading pricing and modify them to meet the individual needs and demands of our clients. They are often used for drying high-quality, temperature- and oxygen-sensitive items. Highly appropriate for drying hygroscopic items to a very low residual moisture content.
Gives you better results.
Our High Quality Products
The Vacuum Tray Dryer enables total moisture vaporization and product drying. It is appropriate for drying thermally sensitive materials that are quickly resolved, polymerized, or degraded at higher temperatures.
The materials to be dried are placed on trays within the vacuum tray dryer, and pressure is decreased using a vacuum pump. Sterilization can be performed before drying, during which no matter is permitted to enter the product. The dryer door is firmly closed, and steam is fed through the gap between the trays and the jacket, allowing heat transmission by conduction.
Used Latest Technology And Quality Row Material For Products
The condenser receives water vapors from the feed and once dried, The vacuum pump is deactivated, and the dried product is collected from the trays.We are a well-known vacuum tray dryer suppliers in India. Their vacuum tray dryers come in capacities ranging from 6 to 96 trays each batch.
2.Halar lined internals for corrosive applications.
3. Steam sterilisable models available.
4. All contact parts are made out of SS304 / SS316 / SS316L quality material in GMP models and mild steel externals with stainless steel internals in standard model.
5. Hollow pad type heating shelves which are easily removable for maintenance.
6. Full welded skirt on vacuum dryer body for flush mounting through the wall.
7. Validation ports and nitrogen purge nozzles can be designed to customers specification requirements.
8. External fluid heating of dryer with protective panels in stainless steel or mild steel powder coated.
9. Dedicated fluid heating and circulating systems. These can be steam or electrically heated. Fluid heating systems are available for water as well as thermic fluid (for temperature requirements above 95 deg C).
10. Condenser and condensate receiver fixed on the dryer body or stand alone for remote installation.
Technical Specifications Of Vacuum Tray Dryer
Vacuum tray dryers are designed to clients’ needs, using standard or cGMP model characteristics. It is a static type of dryer used in many industries under a vacuum atmosphere to dry temperature-sensitive materials as well as medicinal and associated items.
|
Model |
VTD 6 |
VTD 12 |
VTD 18 |
VTD 24 |
VTD 36 |
VTD 48 |
VTD 96 |
|
Capacity in Trays |
6 |
12 |
18 |
24 |
36 |
48 |
96 |
|
Number of Shelves |
6 |
6 |
6 |
8 |
12 |
16 |
32 |
|
Dummy Shelf |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
|
Trays Per Shelf |
1 |
2 |
3 |
3 |
3 |
3 |
3 |
Modifications to fit the needs of the clients!
It eliminates the configuration damage of the drying materials, therefore widely used in pharmaceuticals, chemicals, and foodstuff, etc. They operate on the idea of conduction when under vacuum conditions. There are multiple shelves beneath which items are placed. The top shelves provide enough heating and aid in preventing dry powder from leaking into the solvent extraction system.
